Suspension Components for 2004 Ford F-150 Heritage
No.
Part # / Description / Price
Price
1
Knuckle
Ford
Ford Positions: Right
Description: 2wd. F150. Right. Expedition, Navigator. F250 pick-up. Blackwood.
1
Knuckle Ford
Ford Positions: Left
Description: 2wd. F150. Left. Expedition, Navigator. F250 pick-up. Blackwood.
2
Motorcraft™ Upper Control Arm Ford
Ford Positions: Right
Notes: PARTS: Part includes upper ball joint, upper ball joint not service
Description: F150. Right. Incl.Ball Joint & Bushings. Under GVW 8,500 Lbs.. F250 pick-up. Expedition. Navigator. 2wd, standard suspension. Blackwood.
MSRP $232.58 CAD
$153.50 CAD
MSRP $232.58 CAD
$153.50 CAD
2
Motorcraft™ Upper Control Arm Ford
Ford Positions: Left
Notes: PARTS: Part includes upper ball joint, upper ball joint not service
Description: F150. Left. Incl.Ball Joint & Bushings. Under GVW 8,500 Lbs.. F250 pick-up. Expedition. Navigator. 2wd, standard suspension. Blackwood.
MSRP $252.91 CAD
$166.92 CAD
MSRP $252.91 CAD
$166.92 CAD
4
Shock Absorber Assembly Front Ford
Ford Positions: Left
Description: 2wd, with super crew. Vendor:motorcraft. Vendor #AT-727. 2wd, with heritage. Vendor #AT-728. Standard Suspension. Heavy Duty Suspension.
5
Coil Spring Ford
Ford Positions: Left
Notes: PARTS: Order by spring code.
Description: F150. All. 2wd, without lightning. 2wd, with heritage. Suspension Code:R.
5
Coil Spring Ford
Ford Positions: Front
Description: Suspension Code:K. Exc.Nascar Edition. Suspension Code:J.
5
Coil Spring Ford
Ford Positions: Front
Description: 2wd, code s. F150. Spring code s. Without svt raptor. Suspension Code:S. 4wd, code s.
MSRP $224.27 CAD
$161.47 CAD
MSRP $224.27 CAD
$161.47 CAD
5
Coil Spring Ford
Ford Positions: Front
Description: 2wd, code u. 4wd, code u. F150. Spring code u. Without svt raptor. Suspension Code:U.
MSRP $220.22 CAD
$158.56 CAD
MSRP $220.22 CAD
$158.56 CAD
5
Coil Spring Ford
Ford Positions: Front
Description: 2wd, code v. 4wd, code v. F150. Spring code v. Without svt raptor. Suspension Code:V.
MSRP $222.13 CAD
$159.94 CAD
MSRP $222.13 CAD
$159.94 CAD
5
Coil Spring Ford
Ford Positions: Front
Description: 2wd, code y. 4wd, code y. F150. Spring code y. Without svt raptor. Suspension Code:Y.
MSRP $280.92 CAD
$202.26 CAD
MSRP $280.92 CAD
$202.26 CAD
5
Coil Spring Ford
Ford Positions: Front
Description: 4wd, code z. 2wd, code z. F150. Spring code z. Suspension Code:Z. Without svt raptor.
5
6
Spring Insulator Ford
Ford Positions: Left
Description: 2wd. F150. Expedition, Navigator. F250 pick-up. Blackwood.
7
Lower Control Arm Ford
Ford Positions: Right
Notes: PARTS: Part includes lower ball joint.
Description: 4wd. F150. Right. F250 pick-up. Expedition, Navigator. 2wd, without lightning. 2wd, with heritage.
7
Lower Control Arm Ford
Ford Positions: Left
Notes: PARTS: Part includes lower ball joint.
Description: 4wd. F150. Left. F250 pick-up. Expedition, Navigator. 2wd, without lightning. 2wd, with heritage.
7
Arm Assembly Front Suspension Ford
Ford Positions: Front left lower
Description: 2wd, without lightning. Expedition. Left. Navigator.
8
Lower Control Arm Bushing Ford
Ford Positions: Left
Notes: PARTS: Part included with lower control arm.
Description: 2wd. Expedition, Navigator. Left. Blackwood. Right.
8
Lower Control Arm Bushing Ford
Ford Positions: Right
Notes: PARTS: Part included with lower control arm.
Description: 2wd. Expedition, Navigator. Right. Blackwood. Left.
9
Motorcraft™ Lower Ball Joint Ford
Ford Positions: Left
Notes: PARTS: Part included with lower control arm.
Description: 2wd, with torsion bars. 4wd, with coil spring. Explorer, Mountaineer. Awd. Aviator. Blackwood.
MSRP $102.47 CAD
$67.63 CAD
MSRP $102.47 CAD
$67.63 CAD
No.
Part # / Description / Price
Price
1
Knuckle Front Wheel Ford
Ford Positions: Left
Description: 4wd. F150. Left. F250 pick-up. Expedition, Navigator.
2
Arm Assembly Front Suspension Ford
Ford Positions: Right
Notes: PARTS: Part includes upper ball joint.
Description: F150. Right. F250 pick-up. Expedition. Without auto adjust susp. Navigator. 4wd, without auto level.
2
Arm Assembly Front Suspension Ford
Ford Positions: Left
Notes: PARTS: Part includes upper ball joint.
Description: F150. Left. F250 pick-up. Expedition. Without auto adjust susp. Navigator. 4wd, without auto level.
2
Motorcraft™ Upper Control Arm Ford
Ford Positions: Front right upper
Description: F150. Left. Incl.Ball Joint & Bushings. Under GVW 8,500 Lbs.. F250 pick-up. Expedition. Navigator. 2wd, standard suspension. Blackwood.
MSRP $252.91 CAD
$166.92 CAD
MSRP $252.91 CAD
$166.92 CAD
6

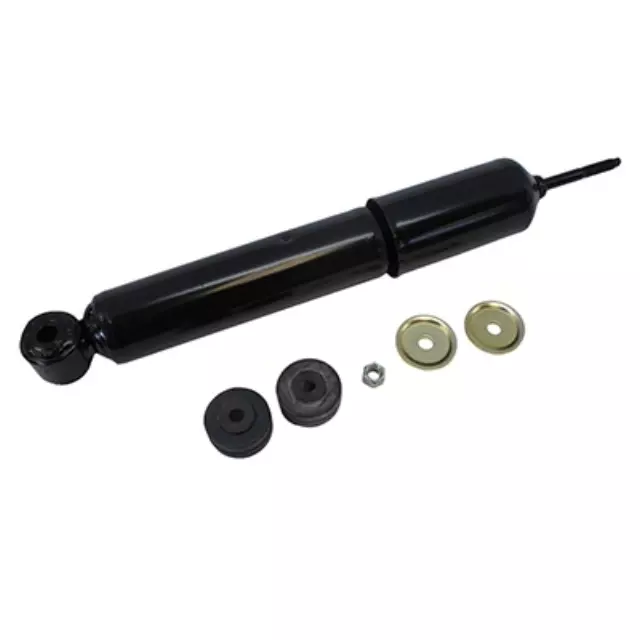

Shock Absorber Assembly - Front Ford
Ford Positions: Left
Description: Standard. Without trailer tow pkg. All. 4wd, f150, heritage.
6
Shock Absorber Assembly - Front Ford
Ford Positions: Front
Description: 2wd, without super crew, hd. Heavy Duty Suspension. Vendor:motorcraft. Vendor #AT-523-G. Exc.gvw 7,700 lbs.
6
Shock Absorber Assembly Front Ford
Ford Positions: Front
Description: 2wd, without super crew, standard. Vendor:motorcraft. Vendor #AT-522-G. Exc.Heavy Duty Suspension. Standard Duty Suspension. Exc.gvw 7,700 lbs.
6
Motorcraft™ Shock Ford
Ford Positions: Front
Description: Off-road pkg. Off Road Suspension. Vendor:motorcraft. Vendor #ASH-14. 4wd, f250, standard. Exc.gvw 7,700 lbs.. FX4 Package. Off Road Package.
7
Arm Assembly Front Suspension Ford
Ford Positions: Front right lower
Description: 2wd, without lightning. Expedition. Right. Navigator.
8
Motorcraft™ Lower Ball Joint Ford
Ford Description: 2wd, with torsion bars. 4wd, with coil spring. Explorer, Mountaineer. Awd. Aviator. Blackwood.
MSRP $102.47 CAD
$67.63 CAD
MSRP $102.47 CAD
$67.63 CAD
11
11
12
Torsion Bar Adjuster Ford
Ford Positions: Left
Description: 4wd. F150. F250 pick-up. Expedition, Navigator.
No.
Part # / Description / Price
Price
N/A
MSRP $91.65 CAD
$65.99 CAD
2
Motorcraft™ Upper Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: F150, Mark LT. Left. 4wd. Incl.Ball Joint & Bushings. From 01/12/2004. To 01/12/2004. 2wd.
MSRP $278.91 CAD
$184.08 CAD
MSRP $278.91 CAD
$184.08 CAD
2
Motorcraft™ Upper Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: 4wd. F150, Mark LT. Right. Incl.Ball Joint & Bushings. From 01/12/2004. To 01/12/2004. 2wd.
MSRP $278.91 CAD
$184.08 CAD
MSRP $278.91 CAD
$184.08 CAD
3
MSRP $117.72 CAD
$84.76 CAD
4
Lower Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: 4wd, heavy-duty. F150, Mark LT. Heavy payload. Right. 2wd, heavy-duty.
4
Motorcraft™ Lower Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: 4wd, standard-duty. F150, Mark LT. Standard payload. Left. Exc.Heavy Duty Payload Package. Incl.Ball Joint & Bushings. 2wd, standard-duty.
4
Lower Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: F150, Mark LT. Heavy payload. Left. 4wd, heavy-duty. 2wd, heavy-duty.
4
Motorcraft™ Lower Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: 4wd, standard-duty. F150, Mark LT. Standard payload. Right. Exc.Heavy Duty Payload Package. Incl.Ball Joint & Bushings. 2wd, standard-duty.
5
Motorcraft™ Hub & Rotor Ford
Ford Notes: Includes: Inner & Outer Bearing Races.
Description: Standard payload. F150, Mark LT. 2wd. Incl.Wheel Bearing and Hub Assembly. Exc.Base Payload Package. 2wd, base pkg.
MSRP $333.00 CAD
$239.76 CAD
MSRP $333.00 CAD
$239.76 CAD
5
Hub And Disc Assembly Ford
Ford Notes: Includes: Inner & Outer Bearing Races.
Description: Heavy payload. F150, Mark LT. 2wd. 2wd, heavy duty.
MSRP $179.98 CAD
$129.59 CAD
MSRP $179.98 CAD
$129.59 CAD
7
Shock Absorber Assembly Ford
Ford Description: F150, Mark LT. 133 wheelbase. 4wd. To 12/04/2005. Base Payload Package. F150, Mark LT. 126 wheelbase. From 12/05/2005. Base Suspension. Heavy Duty Suspension. Heavy Duty Payload Package. Exc.20" Wheels.
MSRP $199.31 CAD
$131.54 CAD
MSRP $199.31 CAD
$131.54 CAD
8
8
Coil Spring Ford
Ford Notes: Order By Spring Code.
Description: F150, Mark LT. Code n. Without svt raptor.
8
Coil Spring Ford
Ford Notes: Order By Spring Code.
Description: F150, Mark LT. Without svt raptor. 2wd, code p.
8
Coil Spring Ford
Ford Notes: Order By Spring Code.
Description: F150, Mark LT. 2wd, code r. Without svt raptor.
MSRP $200.68 CAD
$144.49 CAD
MSRP $200.68 CAD
$144.49 CAD
8
Coil Spring Ford
Ford Notes: Order By Spring Code.
Description: F150, Mark LT. Code t. Without svt raptor.
MSRP $211.63 CAD
$152.38 CAD
MSRP $211.63 CAD
$152.38 CAD
8
Coil Spring Ford
Ford Notes: Order By Spring Code.
Description: F150, Mark LT. Code x. Without svt raptor.
10
No.
Part # / Description / Price
Price
1
Hub Assembly Ford
Ford Positions: Left
Description: Heavy payload. 4 wheel abs. 4wd, f250, with 4 wheel abs. F250 pick-up. 4 wheel abs. 4wd, f150, with 4 wheel abs.
1
Motorcraft™ Hub Assembly Ford
Ford Description: Standard payload. 4 wheel abs. 4wd, f150, without 4 wheel abs. Standard payload. 2 wheel abs. Exc.gvw 7,700 lbs.. From 08/02/1999.
MSRP $476.18 CAD
$314.28 CAD
MSRP $476.18 CAD
$314.28 CAD
3
4
Arm Assembly Front Suspension Ford
Ford Notes: Includes: Ball Joint.
Description: F150. Right. F250 pick-up. Expedition. Without auto adjust susp. Navigator. 4wd, without auto level.
4
Arm Assembly Front Suspension Ford
Ford Notes: Includes: Ball Joint.
Description: F150. Left. F250 pick-up. Expedition. Without auto adjust susp. Navigator. 4wd, without auto level.
7
Lower Control Arm Ford
Ford Description: 4wd. F150. Right. F250 pick-up. Expedition, Navigator. 2wd, without lightning. 2wd, with heritage.
7
Lower Control Arm Ford
Ford Description: 4wd. F150. Left. F250 pick-up. Expedition, Navigator. 2wd, without lightning. 2wd, with heritage.
10
Shock Absorber Assembly - Front Ford
Ford Description: Standard. Without trailer tow pkg. All. 4wd, f150, heritage.
10
Motorcraft™ Shock Ford
Ford Description: Off-road pkg. Off Road Suspension. Vendor:motorcraft. Vendor #ASH-14. 4wd, f250, standard. Exc.gvw 7,700 lbs.. FX4 Package. Off Road Package.
14
Motorcraft™ Stabilizer Link Ford
Ford Description: 4wd. F150. F250 pick-up. Expedition, Navigator. Blackwood.
MSRP $35.63 CAD
$25.66 CAD
MSRP $35.63 CAD
$25.66 CAD
No.
Part # / Description / Price
Price
N/A
Actuator Assembly Ford
Ford Description: Ford Parts are the Only parts designed and built to the specific Standards of Ford Motor Company and are the Only parts recommended for use in your Ford or Lincoln vehicle. F150, Mark LT. To 10/15/2015. 4wd, auto hub lock. Expedition, Navigator. Integrated Wheel end.
MSRP $282.33 CAD
$203.28 CAD
MSRP $282.33 CAD
$203.28 CAD
1
Motorcraft™ Hub & Bearing Ford
Ford Description: 4wd, base pkg. F150, Mark LT. Standard payload. To 12/05/2005. From 12/05/2005. Exc.Heavy Duty Payload Package.
MSRP $554.73 CAD
$366.12 CAD
MSRP $554.73 CAD
$366.12 CAD
2
MSRP $67.62 CAD
$44.63 CAD
4
Motorcraft™ Upper Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: 4wd. F150, Mark LT. Right. Incl.Ball Joint & Bushings. From 01/12/2004. To 01/12/2004. 2wd.
MSRP $278.91 CAD
$184.08 CAD
MSRP $278.91 CAD
$184.08 CAD
5
MSRP $117.72 CAD
$84.76 CAD
6
Motorcraft™ Lower Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: 4wd, standard-duty. F150, Mark LT. Standard payload. Right. Exc.Heavy Duty Payload Package. Incl.Ball Joint & Bushings. 2wd, standard-duty.
6
Motorcraft™ Lower Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: 4wd, standard-duty. F150, Mark LT. Standard payload. Left. Exc.Heavy Duty Payload Package. Incl.Ball Joint & Bushings. 2wd, standard-duty.
7
*Obsolete* Ford
Ford Description: F150. 163 wheelbase. To 11/29/2004. Standard Suspension.
MSRP $167.69 CAD
$90.55 CAD
MSRP $167.69 CAD
$90.55 CAD
7
7
Shock Absorber Assembly Ford
Ford Description: Mark LT. Premium off road shocks. To 12/04/2005. From 11/29/2004. Off Road Suspension. F150. 145 wheelbase. Off Road Package. From 12/05/2005. To 11/29/2004.
MSRP $248.95 CAD
$164.30 CAD
MSRP $248.95 CAD
$164.30 CAD
No.
Part # / Description / Price
Price
N/A
Motorcraft™ Disc Brake Rotor And Hub Assembly Ford
Ford Notes: Includes: Inner & Outer Bearing Races.
Description: Standard payload. All. 2wd, f150, from 11/29/99. M14 wheel bolts. Exc.Nascar Edition. 14mm Wheel Bolts. 5 Stud. Blackwood.
MSRP $158.32 CAD
$113.99 CAD
MSRP $158.32 CAD
$113.99 CAD
N/A
Motorcraft™ Wheel Bearing Seal Ford
Ford Description: E100-150 vans. E150 vans. 2 wheel drive, grease, single piston. F100-150. F150, f250, f350 with 2wd, f150. Expedition, Navigator. F250 pick-up. 1 Piston Caliper. Blackwood.
N/A
Motorcraft™ Outer Bearing Ford
Ford Description: Bearing Only. Serviced with Wheel Race. F150. Expedition, Navigator. F250 pick-up. 2WD. outer. Blackwood.
MSRP $60.96 CAD
$40.24 CAD
MSRP $60.96 CAD
$40.24 CAD
2
Motorcraft™ Upper Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: F150. Right. Incl.Ball Joint & Bushings. Under GVW 8,500 Lbs.. F250 pick-up. Expedition. Navigator. 2wd, standard suspension. Blackwood.
MSRP $232.58 CAD
$153.50 CAD
MSRP $232.58 CAD
$153.50 CAD
2
Motorcraft™ Upper Control Arm Ford
Ford Notes: Includes: Ball Joint.
Description: F150. Left. Incl.Ball Joint & Bushings. Under GVW 8,500 Lbs.. F250 pick-up. Expedition. Navigator. 2wd, standard suspension. Blackwood.
MSRP $252.91 CAD
$166.92 CAD
MSRP $252.91 CAD
$166.92 CAD
8
Coil Spring Ford
Ford Notes: Order By Spring Code.
Description: F150. All. 2wd, without lightning. 2wd, with heritage. Suspension Code:R.
